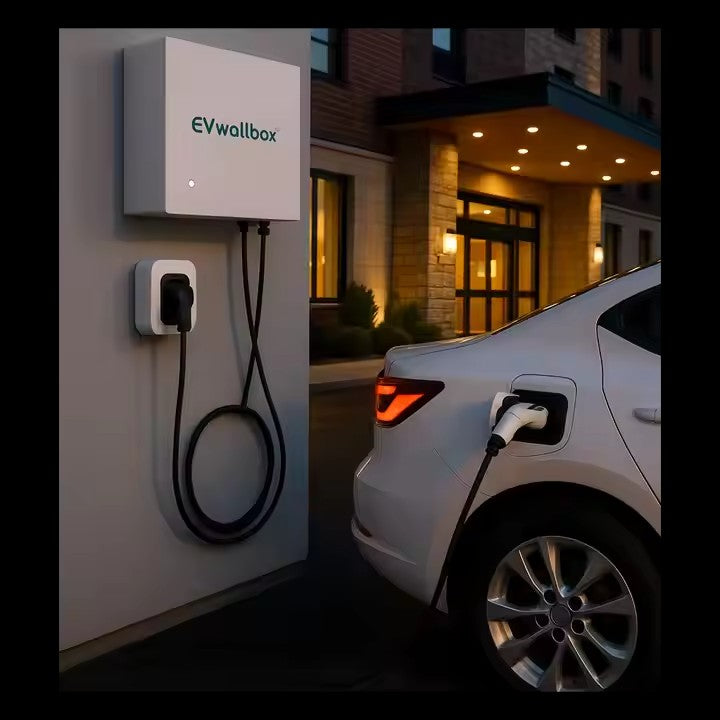

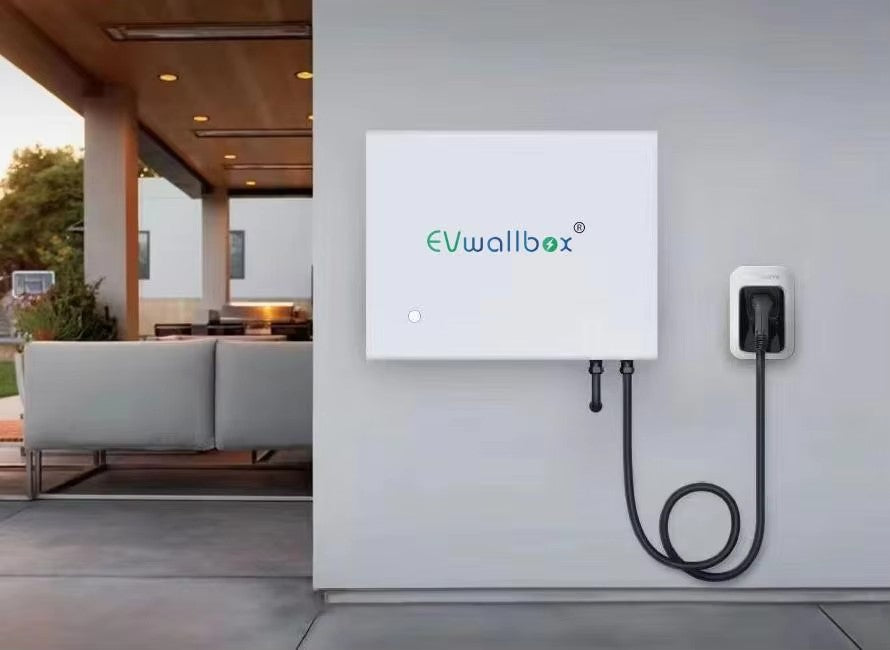

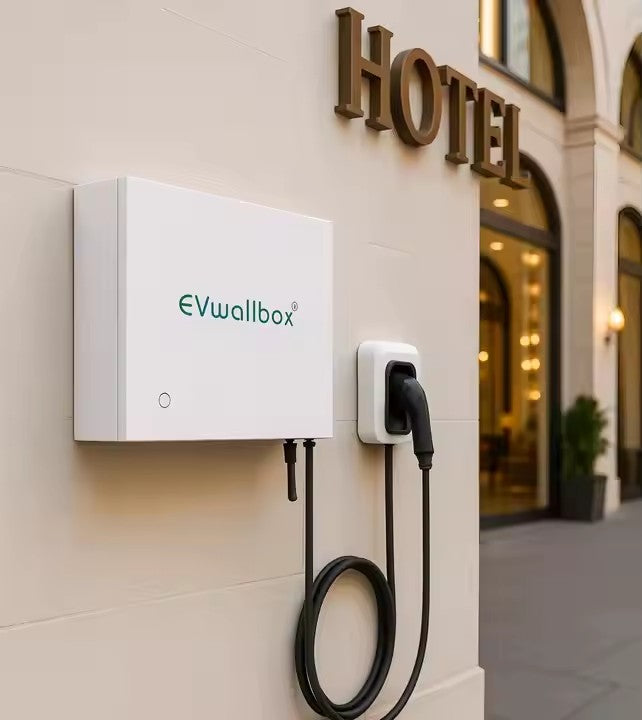

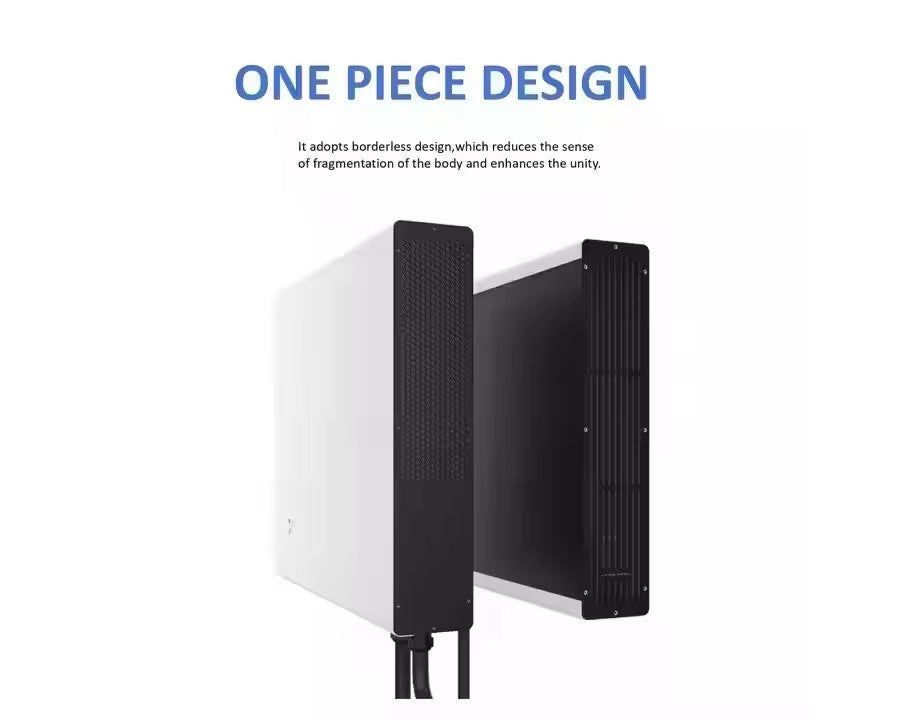

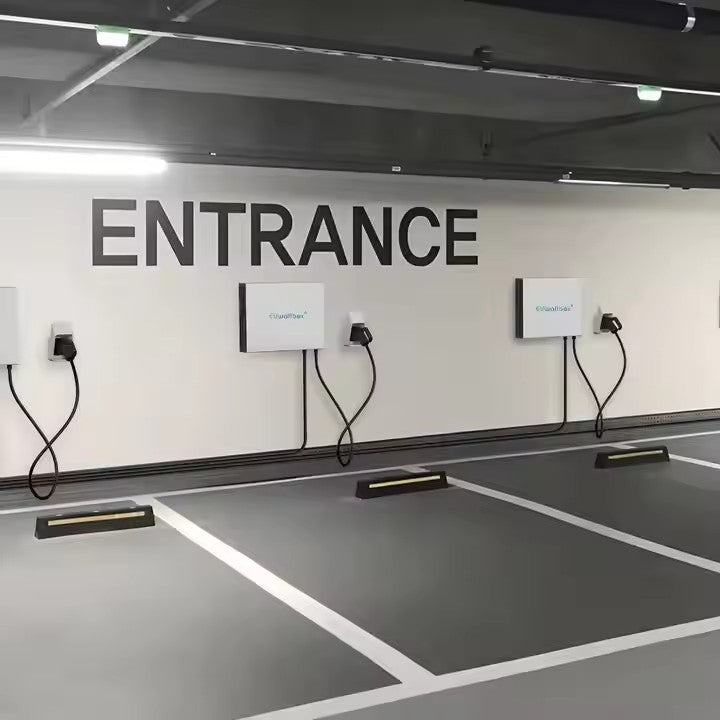

20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
Load image into Gallery viewer, 20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
Load image into Gallery viewer, 20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
Load image into Gallery viewer, 20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
Load image into Gallery viewer, 20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
Load image into Gallery viewer, 20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station

20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station

¥0.00
Get A Quote

SPECIFICATION

Product Number
20KW GB/T EV Charger DC 30KW DC Wall-mounted charging station
Input
400VAC (3P+N+PE) || 50/60Hz
Output Voltage
200 - 750VDC
200 - 1000VDC
Output current
CCS1 – 67A || CCS2 – 67A || CHAdeMO – 67A || GBT- 67A
CCS1 – 100A || CCS2 – 100A || CHAdeMO – 100A || GBT- 100A

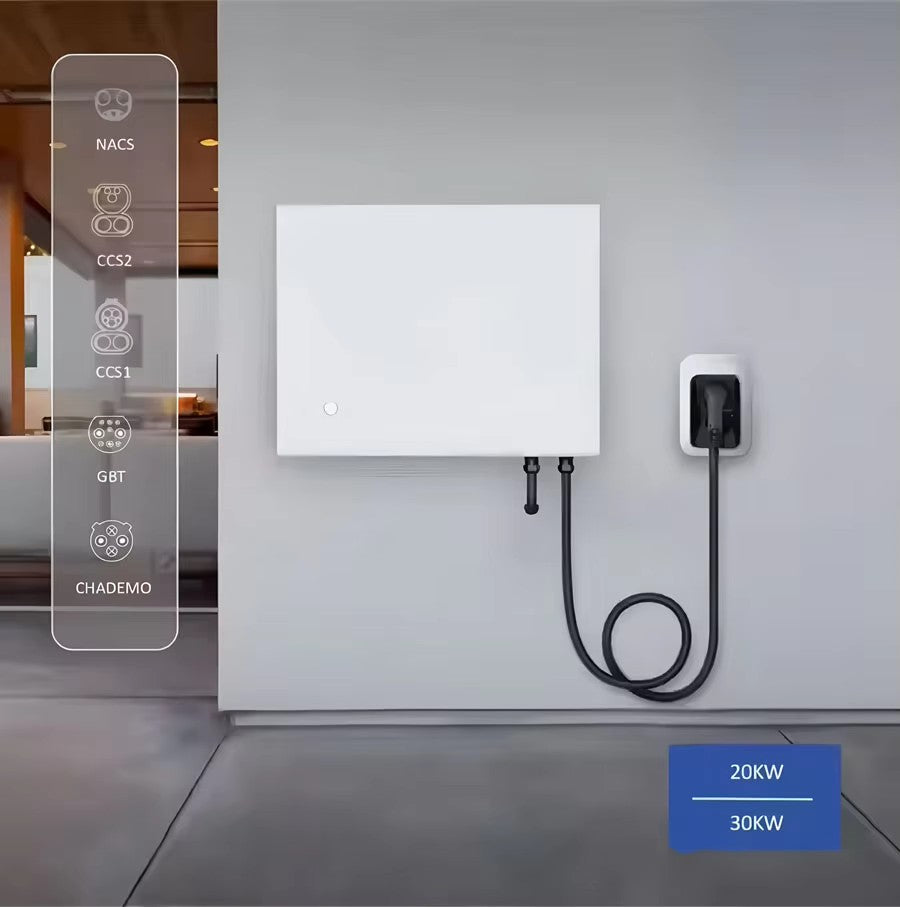

Connectors
CCS1 || CCS2 || CHAdeMO || GBT
Efficiency
≥94% at nominal output power
Power factor
＞0.98
Operating temperature
-30°C to 55°C
Altitude
< 2000m
Working || Storage Humidity
≤ 95% RH || ≤ 99% RH (Non-condensing)
Display
One-click start
RFID system
ISO/IEC 14443A/B
Dimensions (L x D x H)
600mm* 100mm*500mm
Ingress Protection
IP54 || IK10
Power Electronics Cooling
Air Cooled
Weight
25kg
Insulation (input - output)
＞2.5kV
Regulatory Compliance
CE || EMC: EN 61000-6-1:2007, EN 61000-6- 3:2007/A1:2011/AC:2012
Charging Protocol Standards
Mode 4 - IEC-61851, ISO-15118, DIN 70121Mode 4 - CHAdeMO 2.0 Mode 4 - GB/T 18487 2023, GB/T 20234 2023, GB/T 27930 2023
Length of charging cable
3m
Electrical Safety: GFCI
RCD 30 mA Type A
Electrical Safety: Surge Protection
20 kA
Electrical Safety General
Over Voltage, Under Voltage, Over Current, Missing Ground
Electrical Safety: Output Short
Output power disabled when output is short circuited
Electrical Safety Temperature
Temperature Sensors @ Charge Coupler and Power Electronics
Emergency Stop
Emergency Stop Button Disables Output Power
