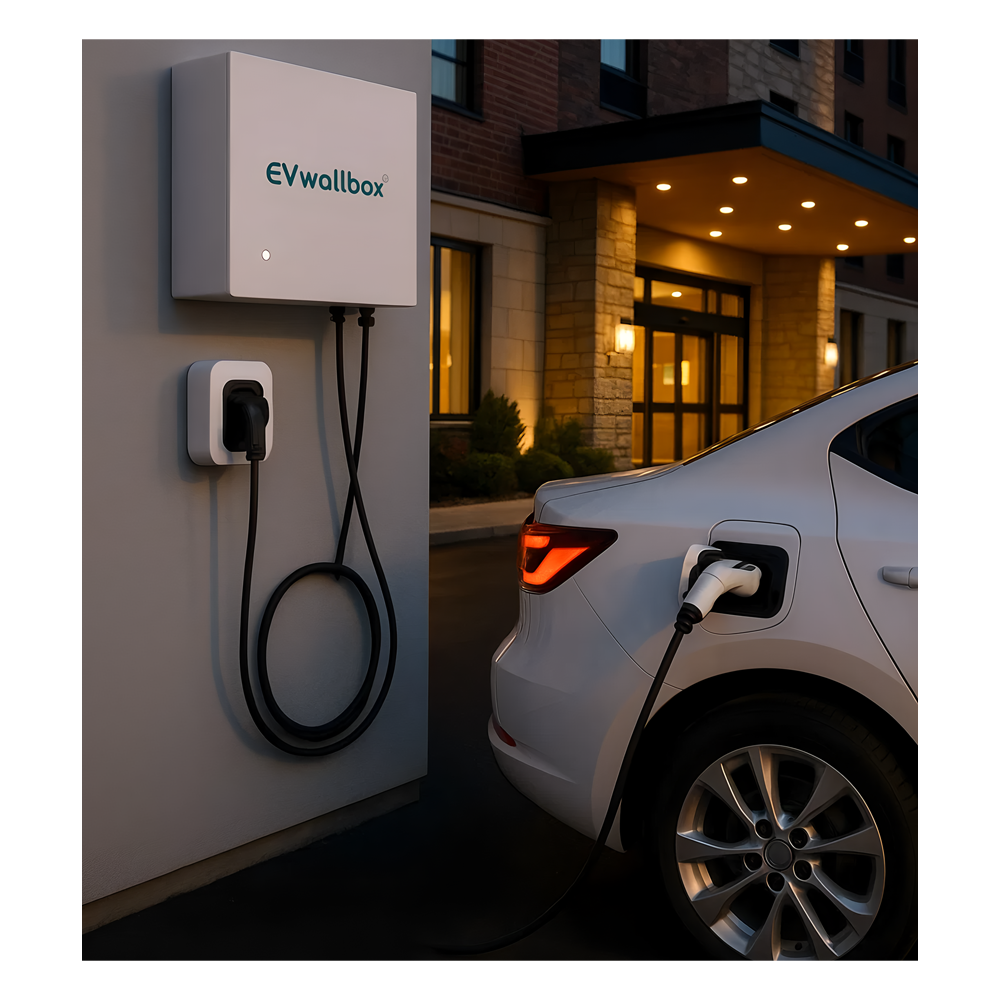

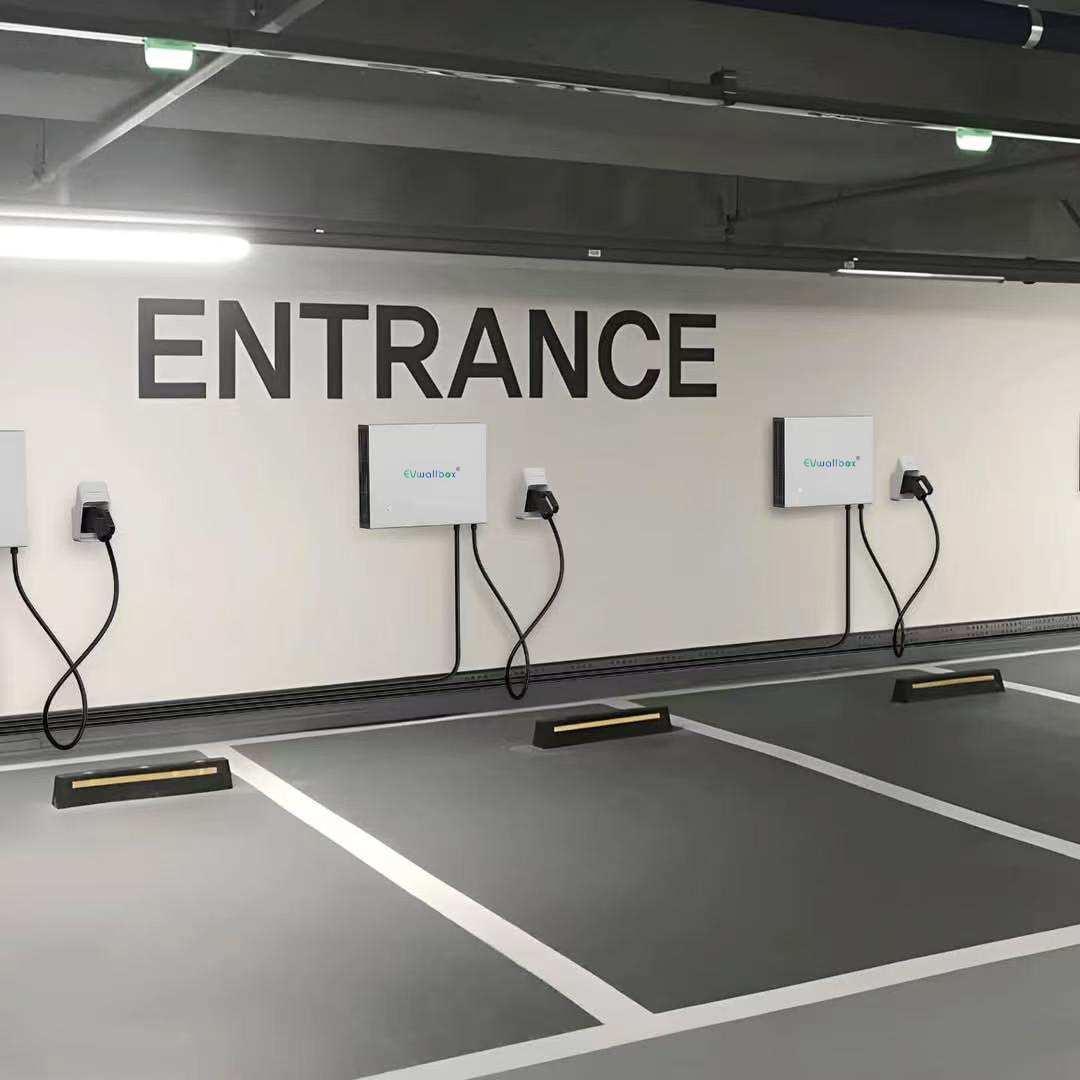

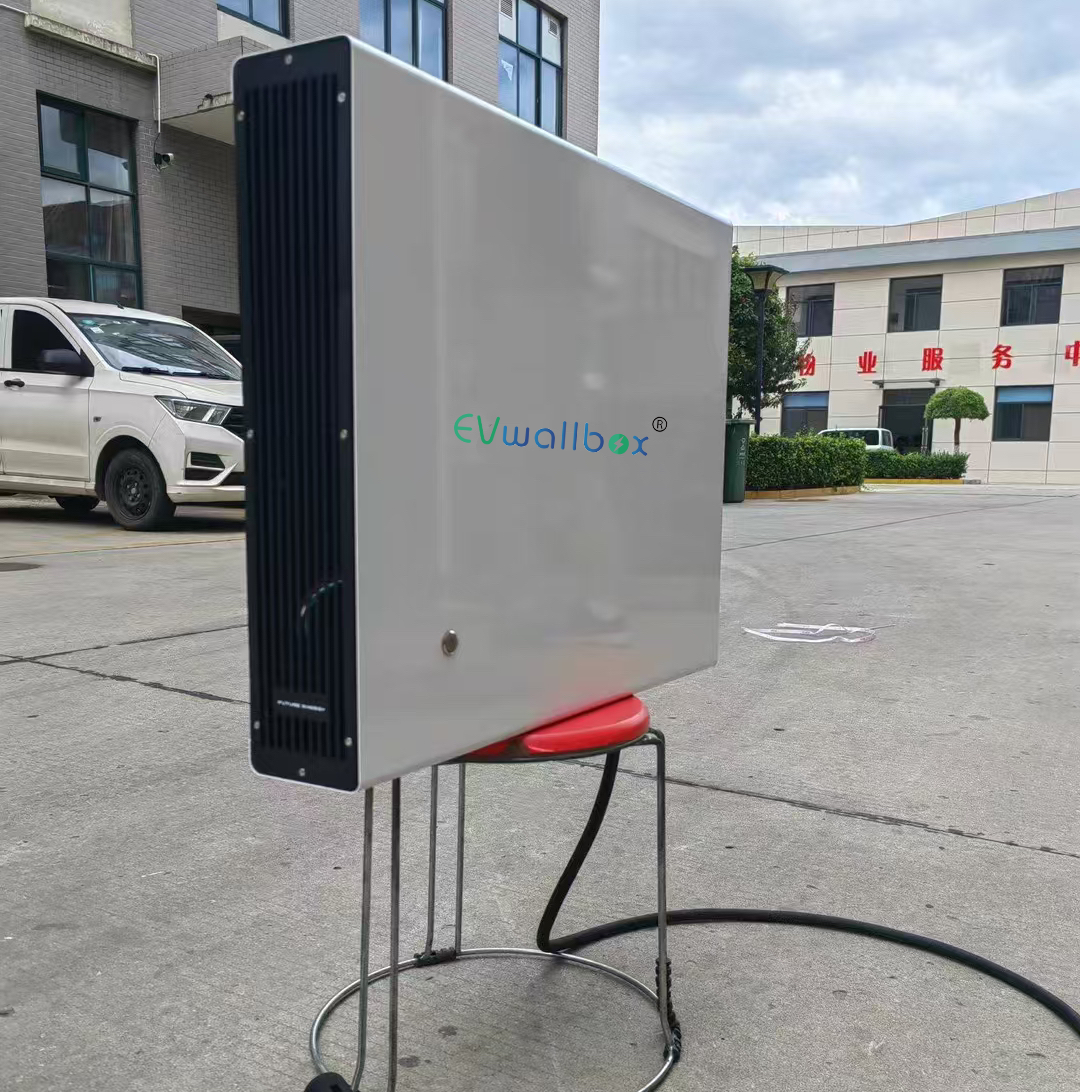

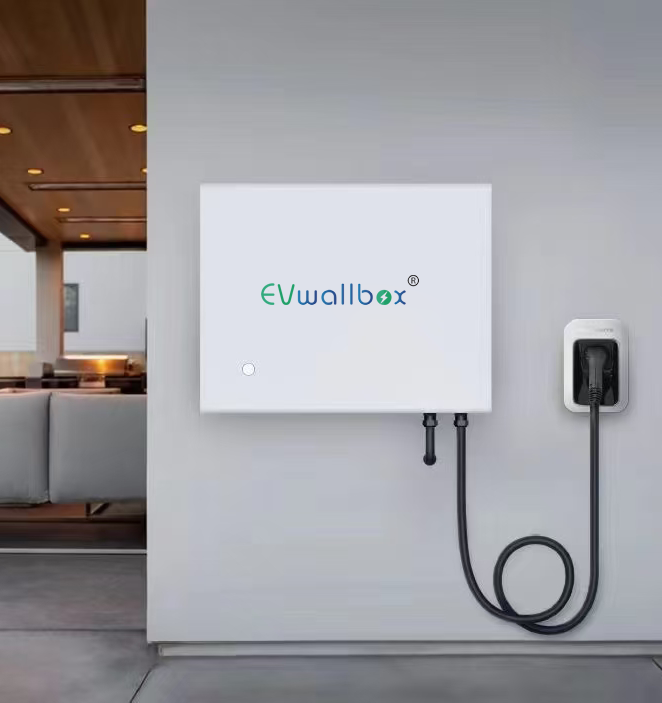

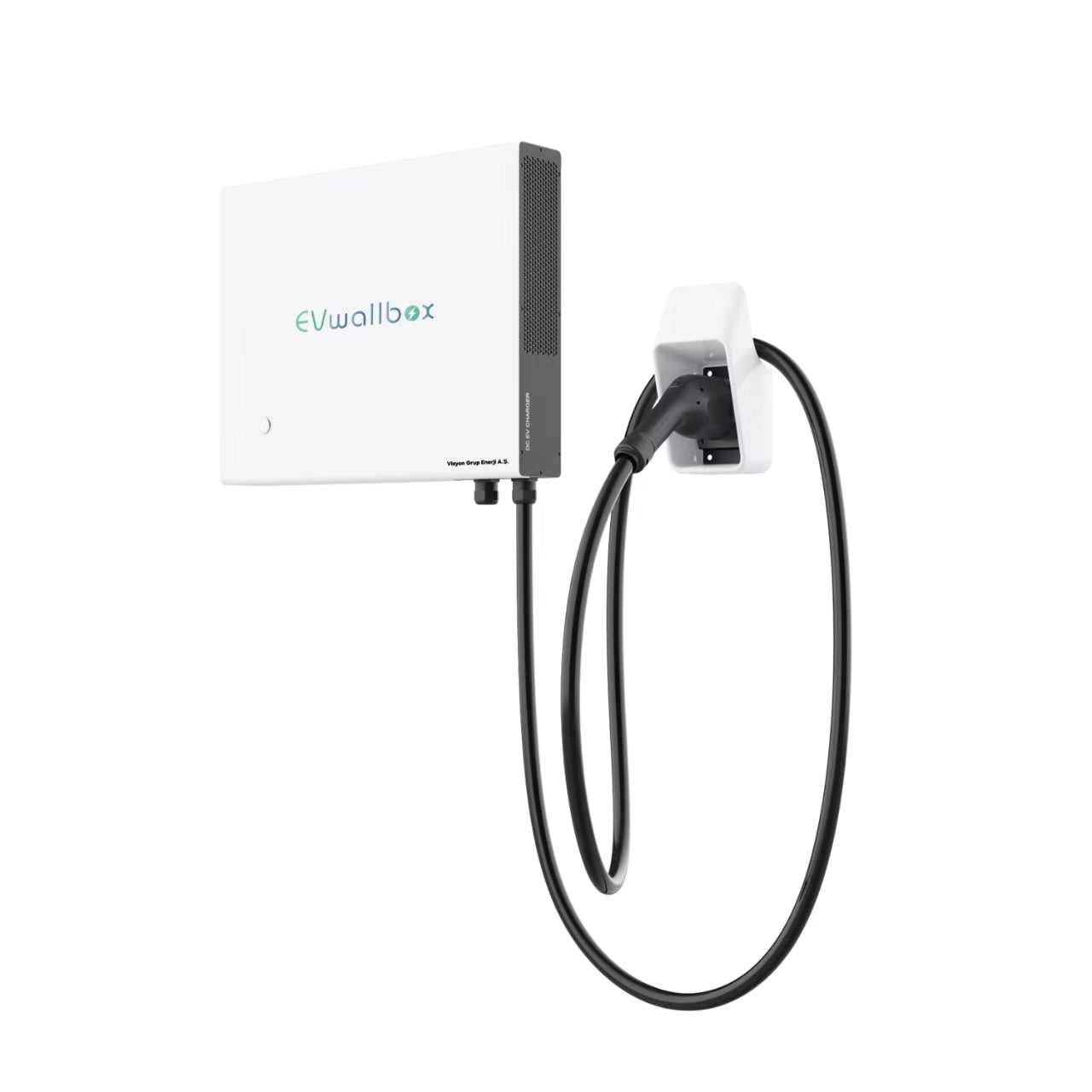

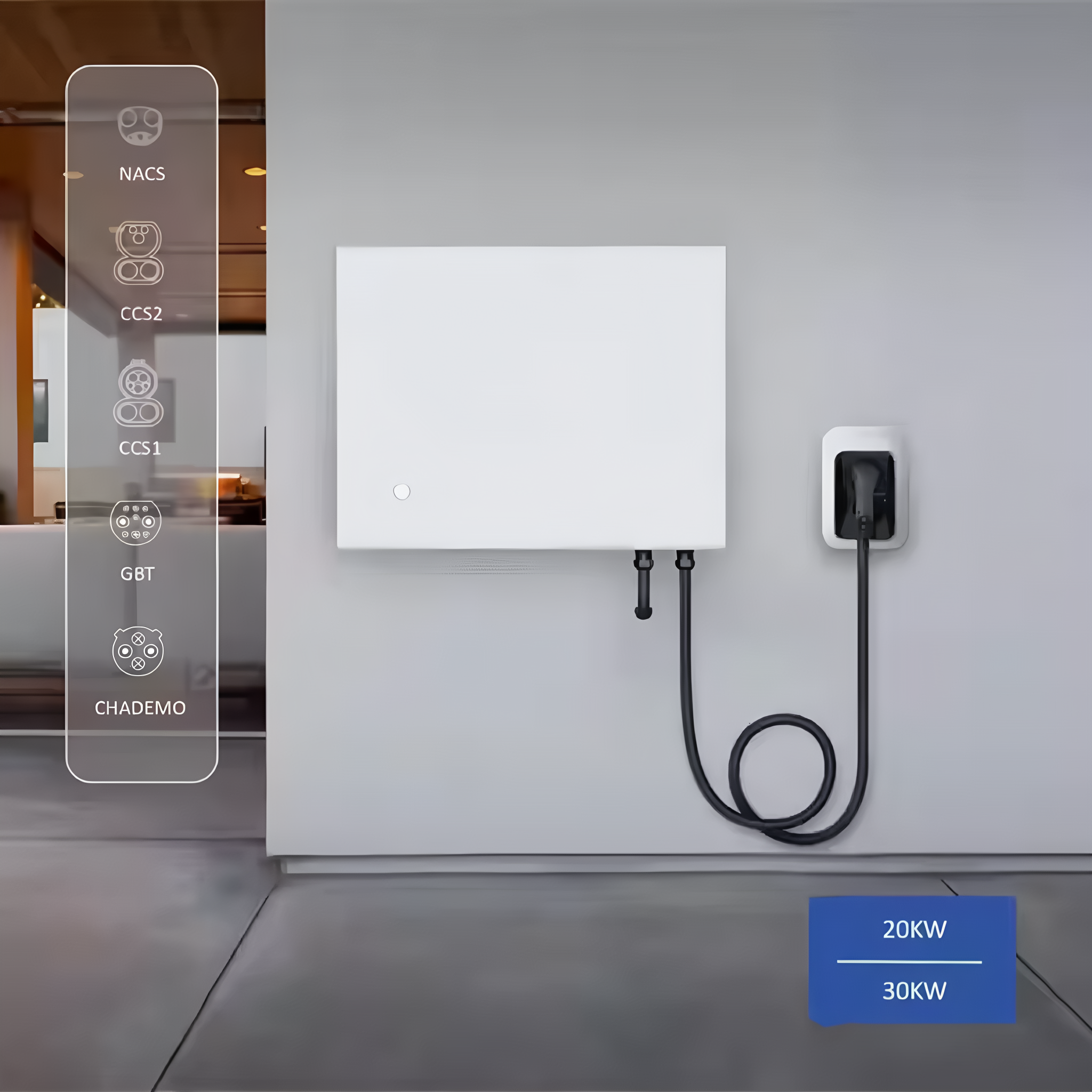

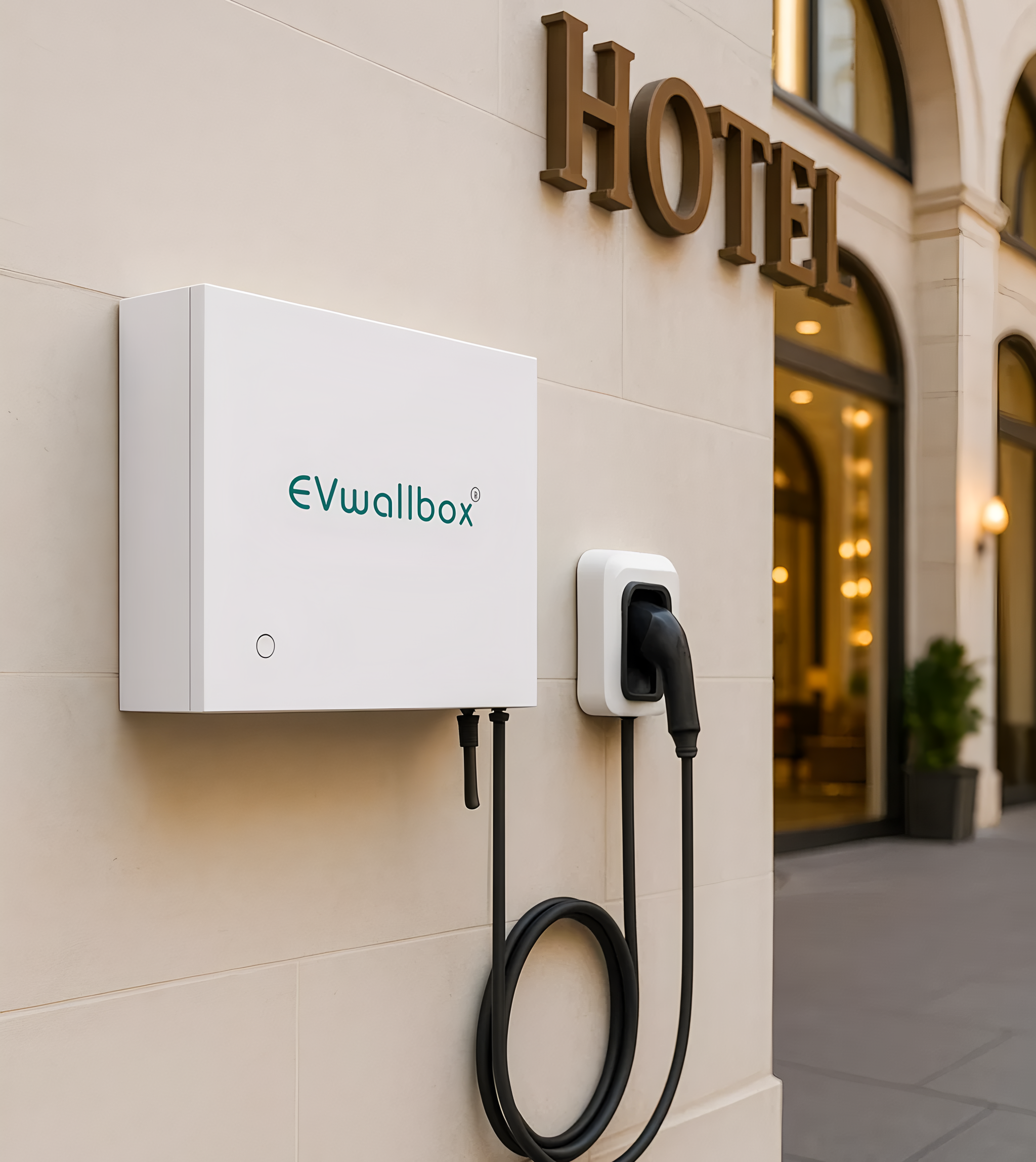

NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
Load image into Gallery viewer, NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
Load image into Gallery viewer, NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
Load image into Gallery viewer, NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
Load image into Gallery viewer, NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
Load image into Gallery viewer, NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
Load image into Gallery viewer, NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
Load image into Gallery viewer, NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger
NACS DC Fast Charging Station 20KW 30KW for Electric Cars

NACS DC Fast Charging Station 20KW 30KW for Electric Cars

¥0.00

NACS DC Charger 20KW 30KW High Efficiency Electric Vehicle Charger

¥0.00
Get A Quote

SPECIFICATION

Product Number
WY01-20kW
WY01-30kW
Input
400VAC (3P+N+PE) || 50/60Hz
Output Voltage
200 - 750VDC
200 - 1000VDC
Output current
CCS1 – 67A || CCS2 – 67A || CHAdeMO – 67A || GBT- 67A
CCS1 – 100A || CCS2 – 100A || CHAdeMO – 100A || GBT- 100A
Connectors
CCS1 || CCS2 || CHAdeMO || GBT
Efficiency
≥94% at nominal output power
Power factor
＞0.98
Operating temperature
-30°C to 55°C
Altitude
< 2000m
Working || Storage Humidity
≤ 95% RH || ≤ 99% RH (Non-condensing)
Display
One-click start
RFID system
ISO/IEC 14443A/B
Dimensions (L x D x H)
600mm* 100mm*500mm
Ingress Protection
IP54 || IK10
Power Electronics Cooling
Air Cooled
Weight
25kg
Insulation (input - output)
＞2.5kV
Regulatory Compliance
CE || EMC: EN 61000-6-1:2007, EN 61000-6- 3:2007/A1:2011/AC:2012
Charging Protocol Standards
Mode 4 - IEC-61851, ISO-15118, DIN 70121Mode 4 - CHAdeMO 2.0 Mode 4 - GB/T 18487 2023, GB/T 20234 2023, GB/T 27930 2023
Length of charging cable
3m
Electrical Safety: GFCI
RCD 30 mA Type A
Electrical Safety: Surge Protection
20 kA
Electrical Safety General
Over Voltage, Under Voltage, Over Current, Missing Ground
Electrical Safety: Output Short
Output power disabled when output is short circuited
Electrical Safety Temperature
Temperature Sensors @ Charge Coupler and Power Electronics
Emergency Stop
Emergency Stop Button Disables Output Power
Product Details
Company Profile
Product Packaging
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent，we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
